SS-55 Series Tilt Switch

  • All probe models are air tight, dust proof and waterproof
  • Compact probess hould be used for applications where the area is limited and standard
  • Heavy probess hould be used for a brasion resistant applications.
  • Simple Installation and setup
  • Lower costs
Get offer Share
SS-55 Series Tilt Switch

Tilt Switch Probes are electro-mechanical tilt sensors designed for sensing bulk materials presence or absence at the location of installation. Typical applications include high and low level detection and detection of plugged conditions in chutes. Also used for detecting the conditions of bulk material on conveyor belts.

KBT Tilt Switch are made from two materials for different applications: The SS series with stainless steel body and the CB series which are made metal cast to meet heavy working conditions. Depending on the applications, can be supplied with a dedicated control unit or can be directly integrated in existing control system.

Specifications​

Weight 0.45 kg (0.95 kg with cable)
Protection Class IP68
Certificate CE
Contact Values 12,5A - 120VAC / 5 ohm

Application

High level control for silos and feed hoppers (dry bulk materials or liquids)
Flow / no-flow detector
Plugged chute detector
Belt tracking indication

Technicial Specifications

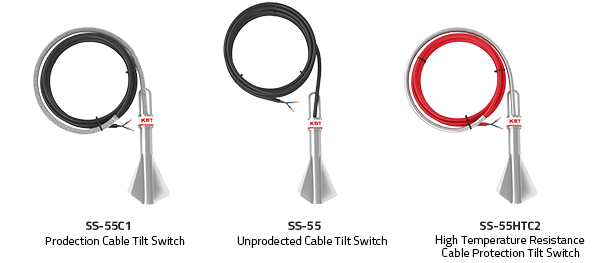

Model Tilt Angle Temperature Degree Description​
SS-55 35° in any direction -40°C to +80°C Stainless Steel Body with Palette Head (for granulated/powder-like materials)
SS-55HT 35° in any direction -40°C to +190°C Stainless Steel Body with Palette Head (for granulated/powder-like materials) + High Temperature Resistance
SS-55-B1 20° in any direction -40°C to +80°C Stainless Steel Body with Palette Head (for granulated/powder-like materials) + 20° Angle + Mercury Free
SS-55HT-B1 20° in any direction -40°C to +190°C Stainless Steel Body with Palette Head (for granulated/powder-like materials) + High Temperature Resistance + 20° Angle + Mercury Free
SS-R55 20° in any direction -40°C to +80°C Stainless Steel Body with Palette Head (for granulated/powder-like materials) + 20° Angle
SS-R55HT 20° in any direction -40°C to +190°C Stainless Steel Body with Palette Head (for granulated/powder-like materials) + High Temperature Resistance + 20° Angle
SS-55HT-C1 35° in any direction -40°C to +190°C Stainless Steel Body with Palette Head (for granulated/powder-like materials) + High Temperature Resistance + Steel Tubing for Cable Protection
SS-55HT-C2 35° in any direction -40°C to +190°C Stainless Steel Body with Palette Head (for granulated/powder-like materials) + High Temperature Resistance + Spiral Pipe for Cable Protection

Cable length 3.3 metres.​

Control Panel Specifications

Entry All Models 115/230 VAC, 50/60 Hz
Alarm Contact KT20-P (2) SPDT 115/230VAC 10 A / 30VDC 7A non-inductive
KT25-DIN (1) NO 115/230VAC 2A / 20VDC 3A
Fault Contact All Models (1) NO 2A rated for 115/[email protected]
Delay Time All Models Can be set to 1, 2, 4 or 6 seconds.
Tempreature All Models -40°C to +50°C
Protection KT20-P IP65 (NEMA 4)
KT25-DIN IP20 (NEMA 1)
Certificate All Models CE
Hazard Zone Usage Awaiting Approval
